FD83-2128-32-32 Coupling
Danfoss Authorized Distributor
The FD83 coupler series represents the pinnacle of liquid cooling connection solutions
Key Features
High-flow design with minimal pressure drop Non-spill, double shut-off valve technology Extended operational life cycle (100,000+ connections) Compatible with various cooling fluids and additives Minimal air inclusion during connection/disconnection
Liquid Cooling Products
Contact Now
Description
Reviews
| Coupling Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | Fluid Loss | CV value | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connected | Socket/Female Half | Socket/Female Half | Connected | Socket/Female Half | Socket/Female Half | |||||||||||
| (In) | (bar) | (psi) | (bar) | (psi) | (bar) | (psi) | (bar) | (psi) | (bar) | (psi) | (bar) | (psi) | (ipm) | (gpm) | cc. max | |
| 1 | 10 | 150 | 10 | 150 | 10 | 150 | 20 | 300 | 20 | 300 | 20 | 300 | 189 | 50 | 5.0 | 30 |
| 2 | 10 | 150 | 10 | 150 | 10 | 150 | 20 | 300 | 20 | 300 | 20 | 300 | 800 | 211 | 12 | 127 |
|
Part Number |
Body Size |
Port Size |
Thread | Type | Fig. | Dimensions | Hex | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | ||||||||||
| mm | (in) | mm | (in) | mm | (in) | ||||||
| FD83-2052-16-16 | 1 | 1 | 1-11-½ | Female NPTF | 1 | 95.5 | (3.76) | 71.6 | (2.82) | 41 | (1.63) |
| FD83-2052-12-16 | 1 | ¾ | ¾-14 | Female NPTF | 1 | 70.1 | (2.76) | 71.6 | (2.82) | 41 | (1.63) |

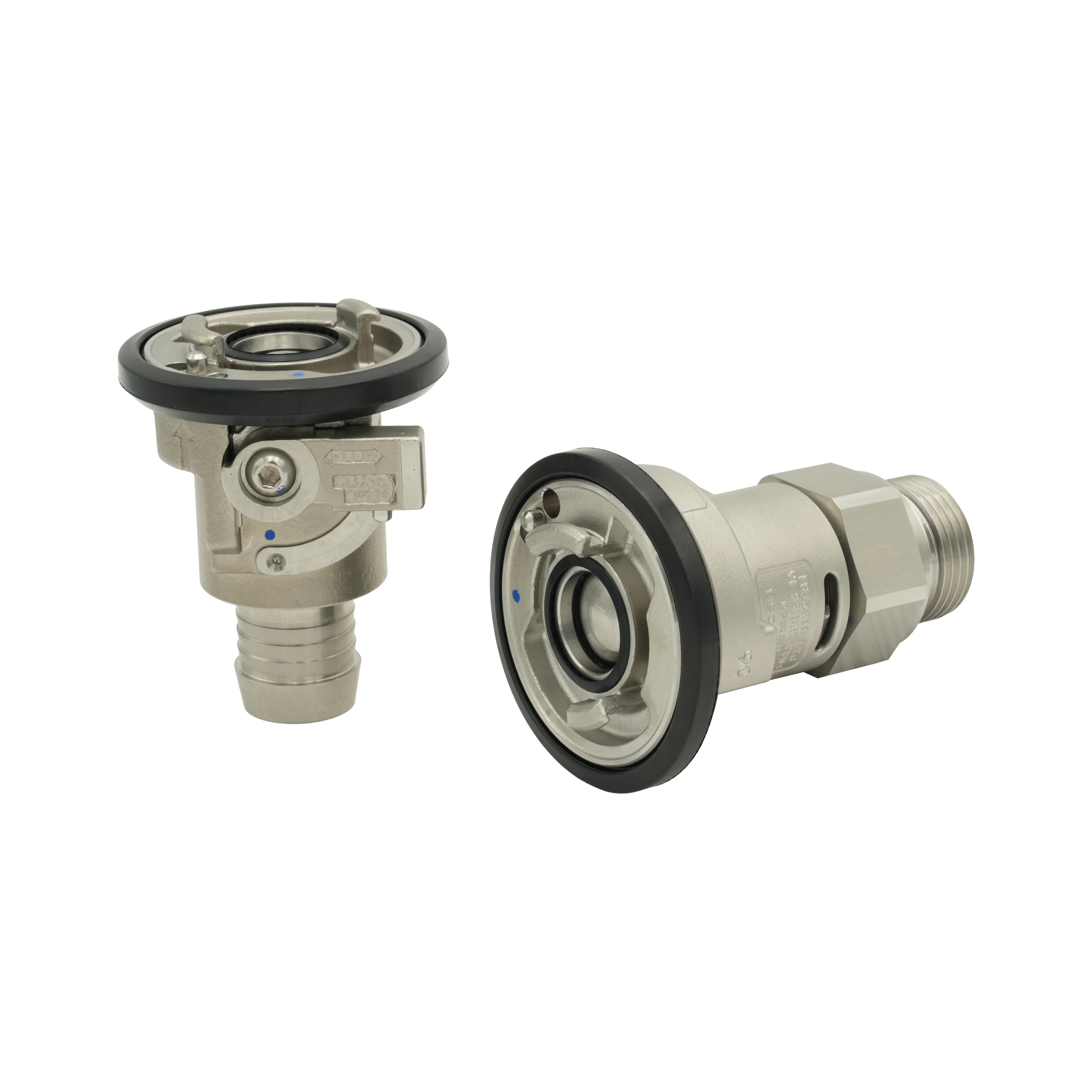

| FD83-2046-16-16 | 1 | 1 | NA | 1" Hose Barb | 2 | 84.2 | (3.31) | 71.6 | (2.82) | - | - |
| FD83-2092-16-16 | 1 | 1 | NA | 1" Hose Barb 90° | 3 | 125 | (4.92) | 71.6 | (2.82) | - | - |

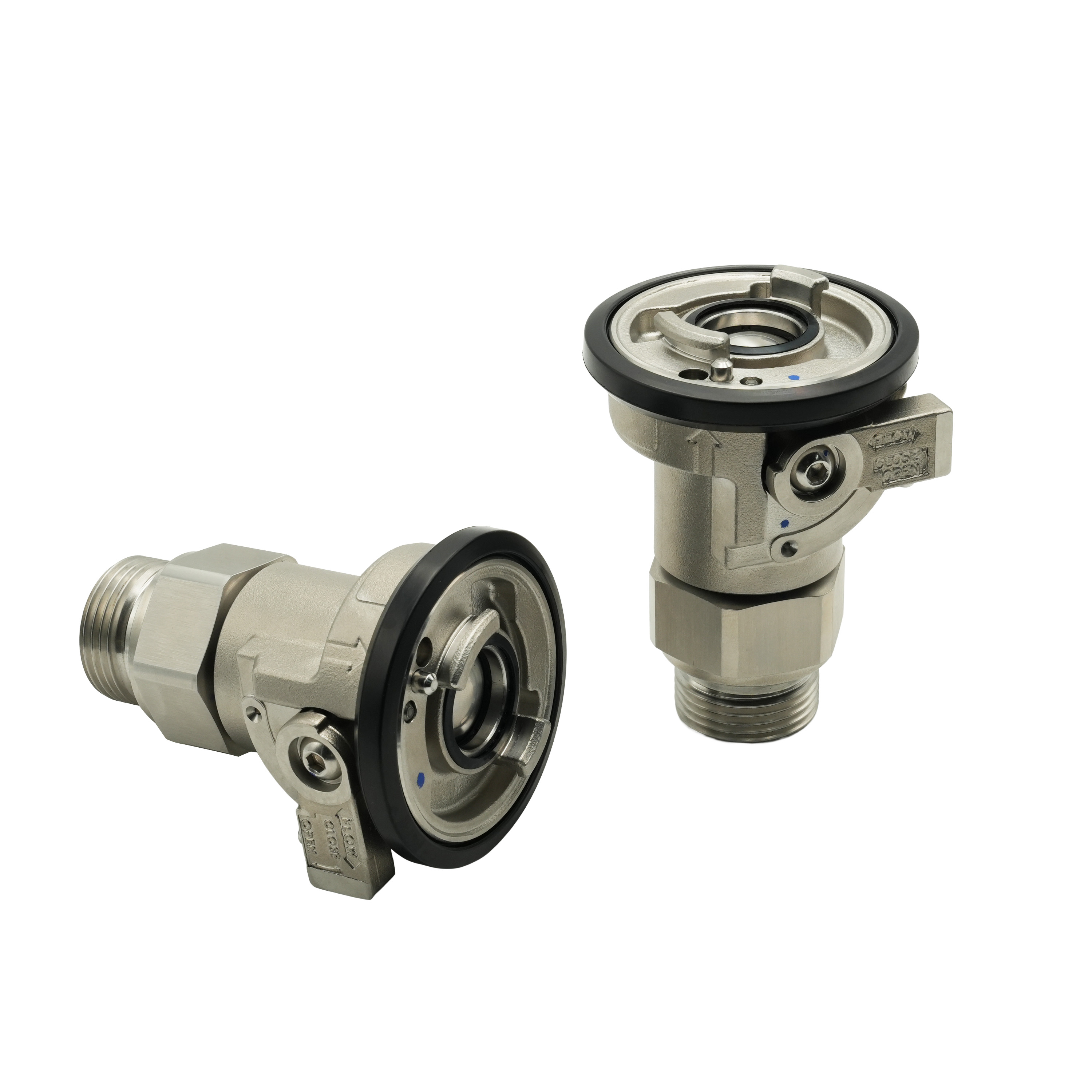

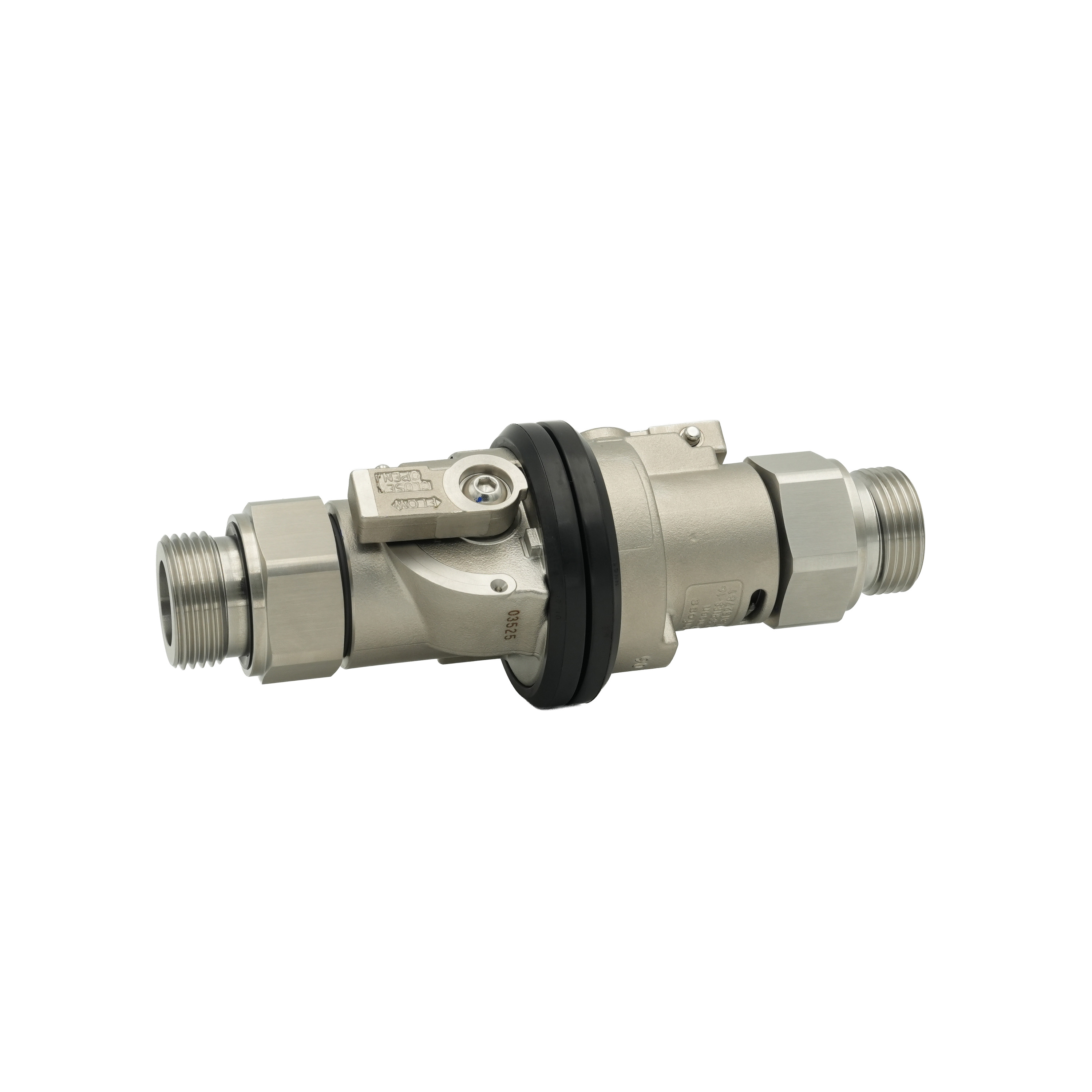

| FD83-2096-16-16 | 1 | 1 | 1 5/16-12 | Male ORB | 5 | 95.5 | (3.76) | 71.6 | (2.82) | 41 | (1.63) |
| FD83-2140-16-16 | 1 | 1 | G1-11 | Male BSPP | 5 | 95.5 | (3.76) | 71.6 | (2.82) | 41 | (1.63) |
| FD83-2126-16-16 | 1 | 1 | G1-11 | Female BSPP | 1 | 84.3 | (3.32) | 71.6 | (2.82) | 41 | (1.63) |

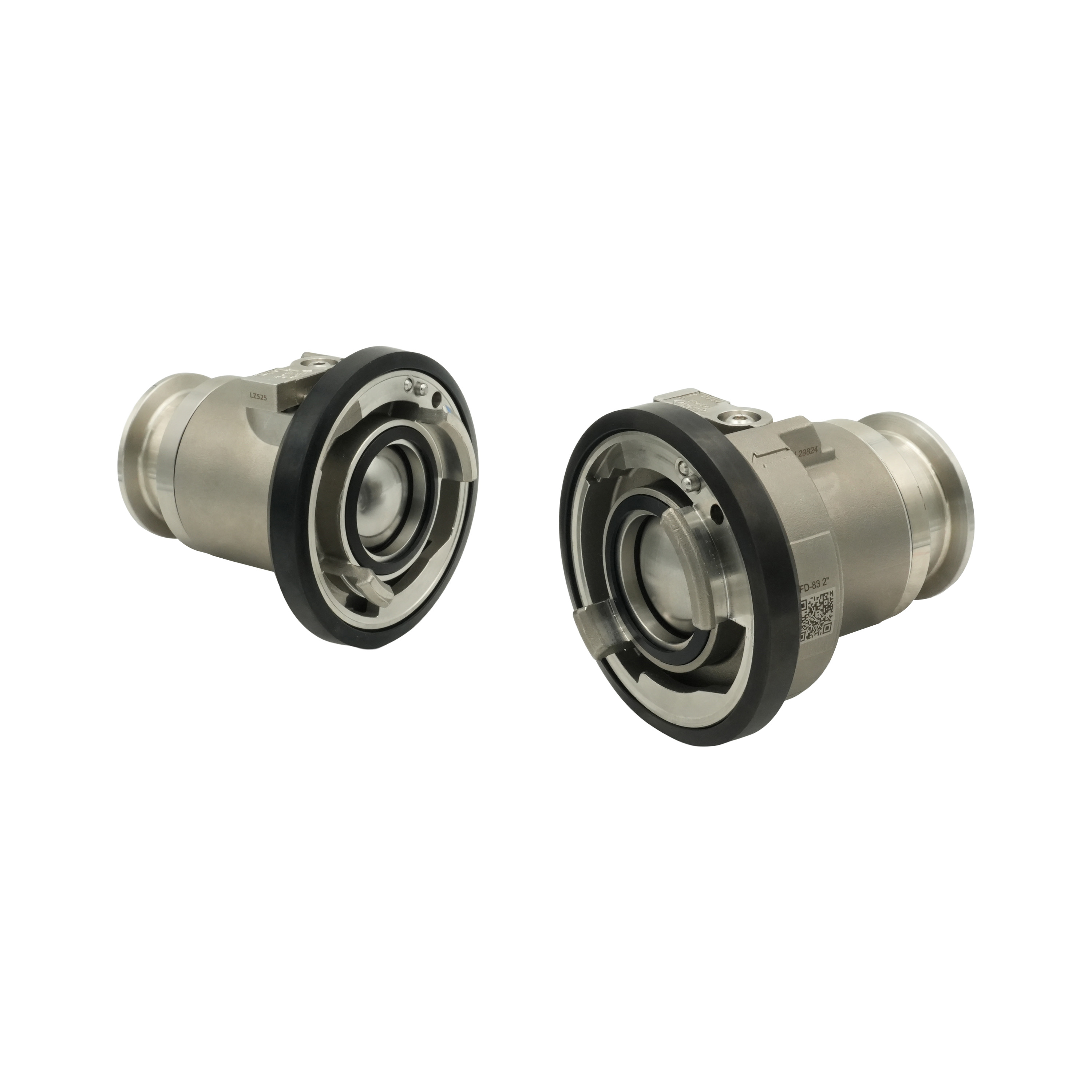

| FD83-2128-16-16 | 1 | 1 | NA | Sanitary Flange 1" | 4 | 79.6 | (3.13) | 71.6 | (2.82) | - | - |
| FD83-2126-32-32 | 2 | 2 | G2-11 | Female BSPP | 1 | 122.4 | (4.82) | 105.3 | (4.15) | 70 | (2.76) |

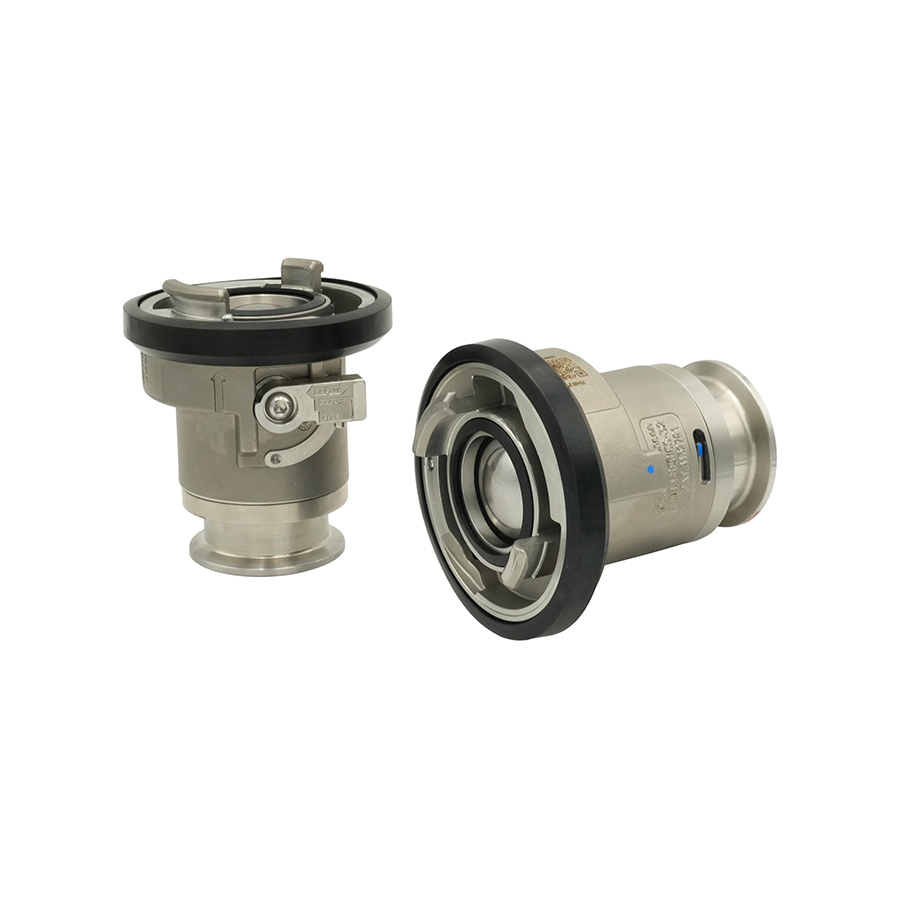

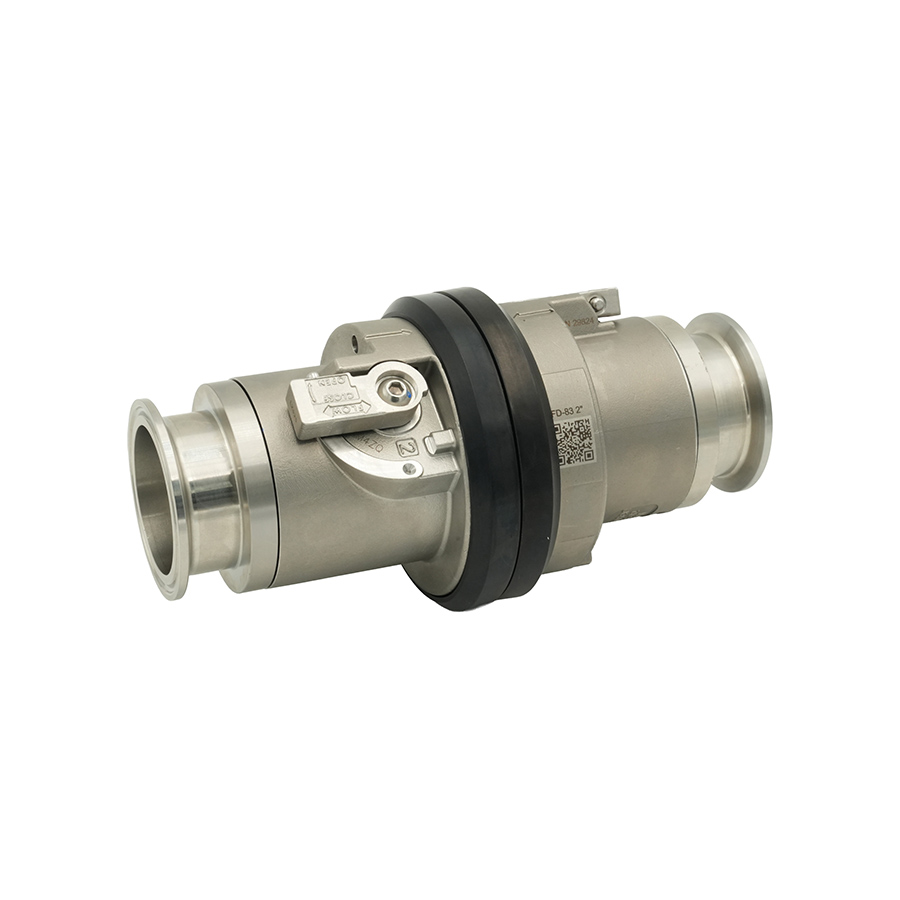

| FD83-2128-32-32 | 2 | 2 | NA | Sanitary Flange 2" | 4 | 102.4 | (4.03) | 105.3 | (4.15) | - | - |
| FD83-2052-32-32 | 2 | 2 | 2-11-½ | Female NPT | 1 | 122.4 | (4.82) | 105.3 | (4.15) | 70 | (2.76) |
